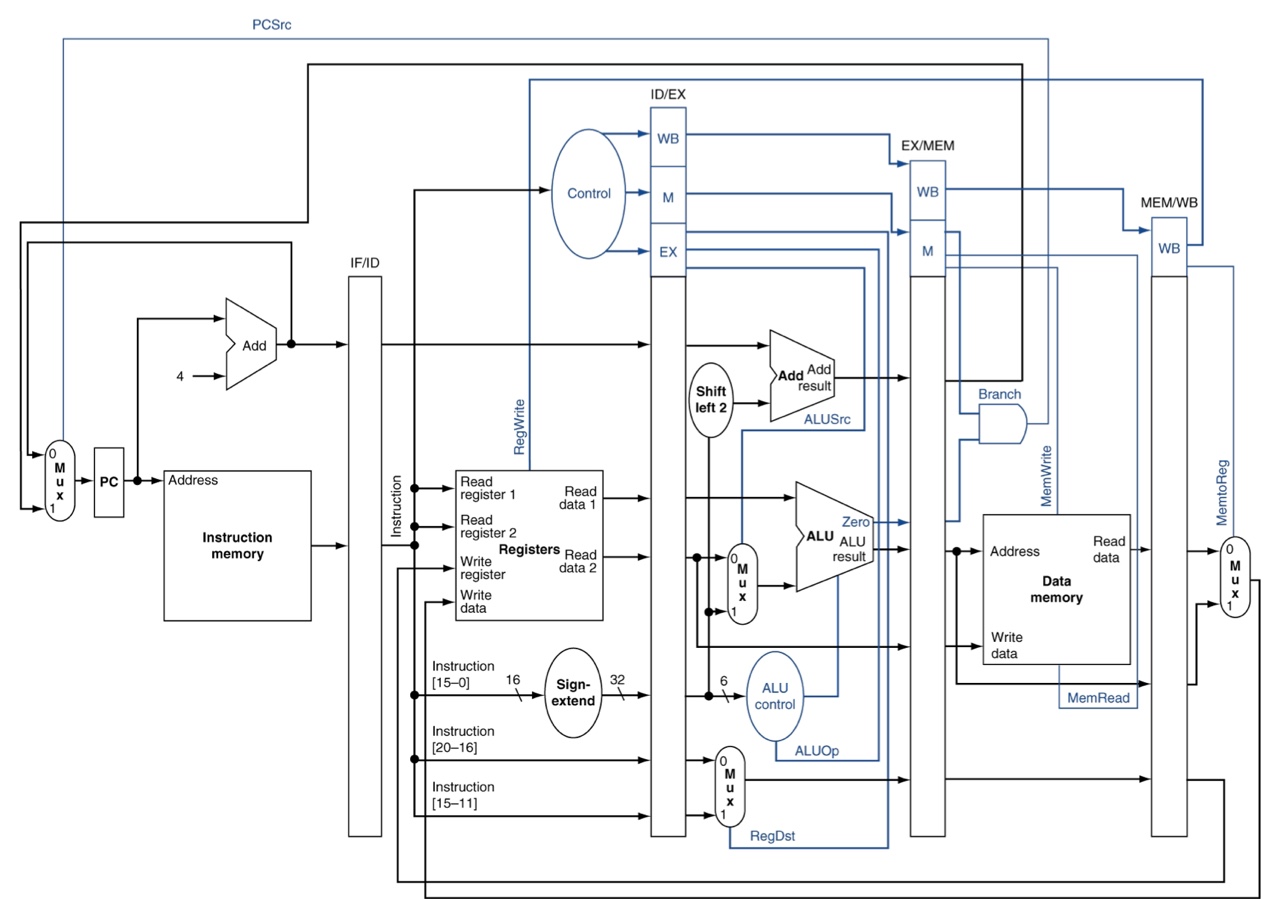

Pipelined datapath
We need registers between stages to hold information produced in previous stage and make isolation

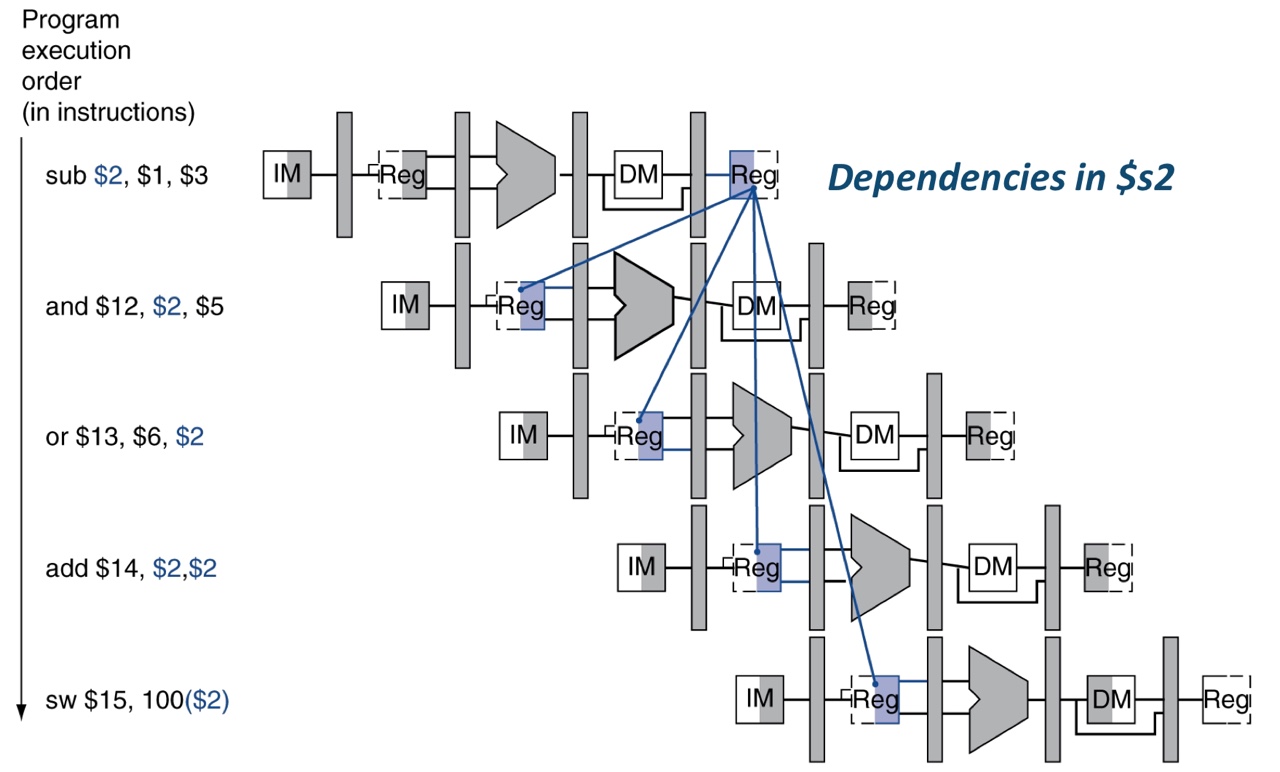

Data hazards
When an instruction depends on the completion of data access by a previous instruction, it causes data hazards.
How to detect & when to forward
- Step 1: Pass register numbers along pipeline
- if I-format or branch instruction, Rd is invalid value
- Step 2: Check the following data hazard conditions
- EX/MEM.RegisterRd == ID/EX.RegisterRs
- EX/MEM.RegisterRd == ID/EX.RegisterRt
- MEM/WB.RegisterRd == ID/EX.RegisterRs
- MEM/WB.RegisterRd == ID/EX.RegisterRt
- Step 3: If there is a data hazard, then do forwarding
- But only if the forwarding instruction writes to a register
- Check the RegWrite signal in EX/MEM.RegWrite and MEM/WB.RegWrite is 1
- And only if Rd for the forwarding instruction is not $zero
- $zero cannot be overwritten
- EX/MEM.RegisterRd != 0
- MEM/WB.RegisterRd != 0

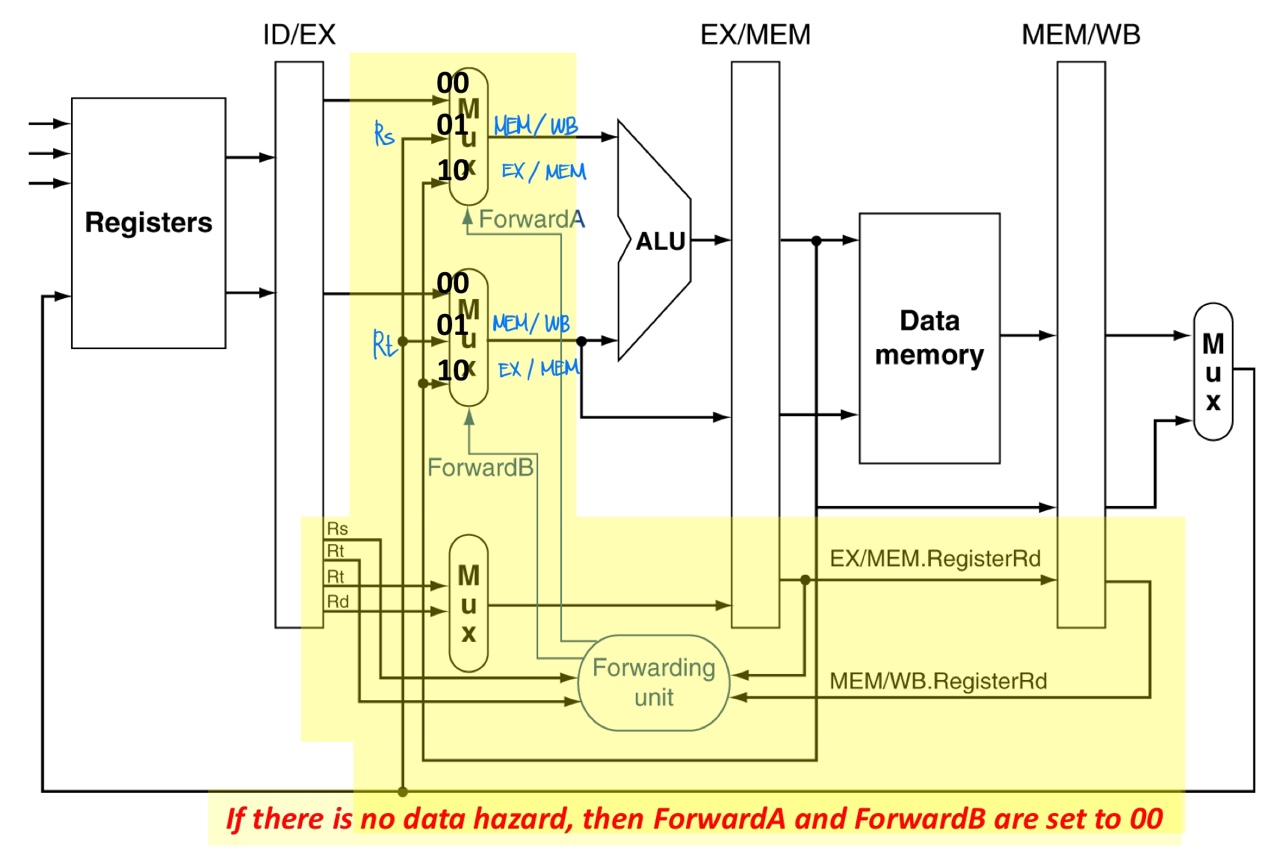

How to process
- EX hazards
- If (EX/MEM.RegWrite == 1 && EX/MEM.RegisterRd != 0 && EX/MEM.RegisterRd == ID/EX.RegisterRs)
ForwardA = 10
- If (EX/MEM.RegWrite == 1 && EX/MEM.RegisterRd != 0 && EX/MEM.RegisterRd == ID/EX.RegisterRt)
ForwardB = 10
- MEM hazard
- If (EX/MEM.RegWrite == 1 && EX/MEM.RegisterRd != 0 && MEM/WB.RegisterRd == ID/EX.RegisterRs)
ForwardA = 01
- If (EX/MEM.RegWrite == 1 && EX/MEM.RegisterRd != 0 && MEM/WB.RegisterRd == ID/EX.RegisterRt)
ForwardB = 01
- Both EX & MEM hazards
- Use the most recent result (the result in EX/MEM)

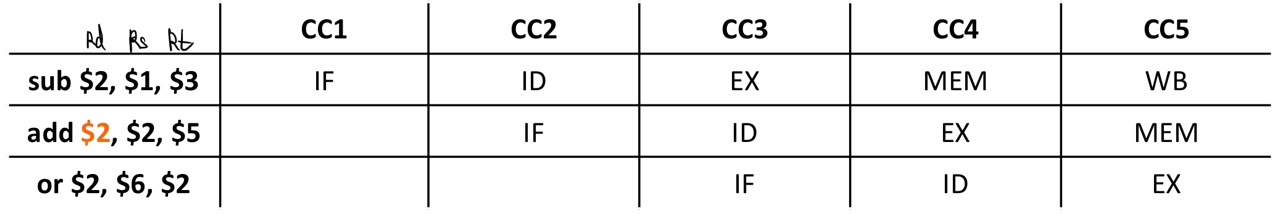

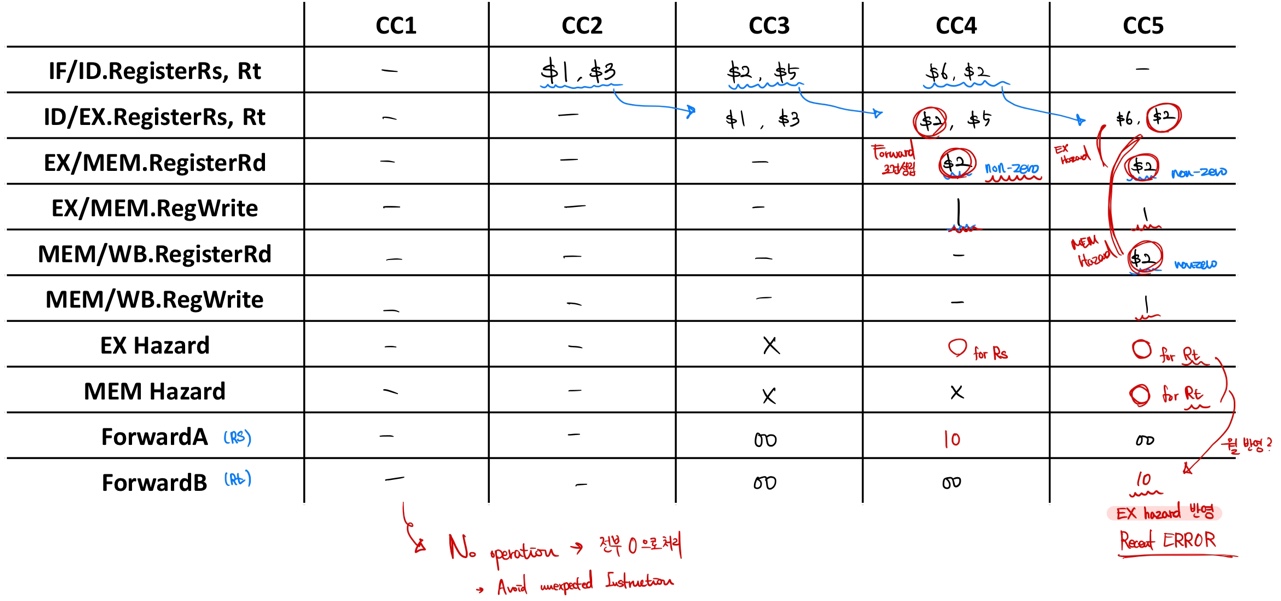

Practice

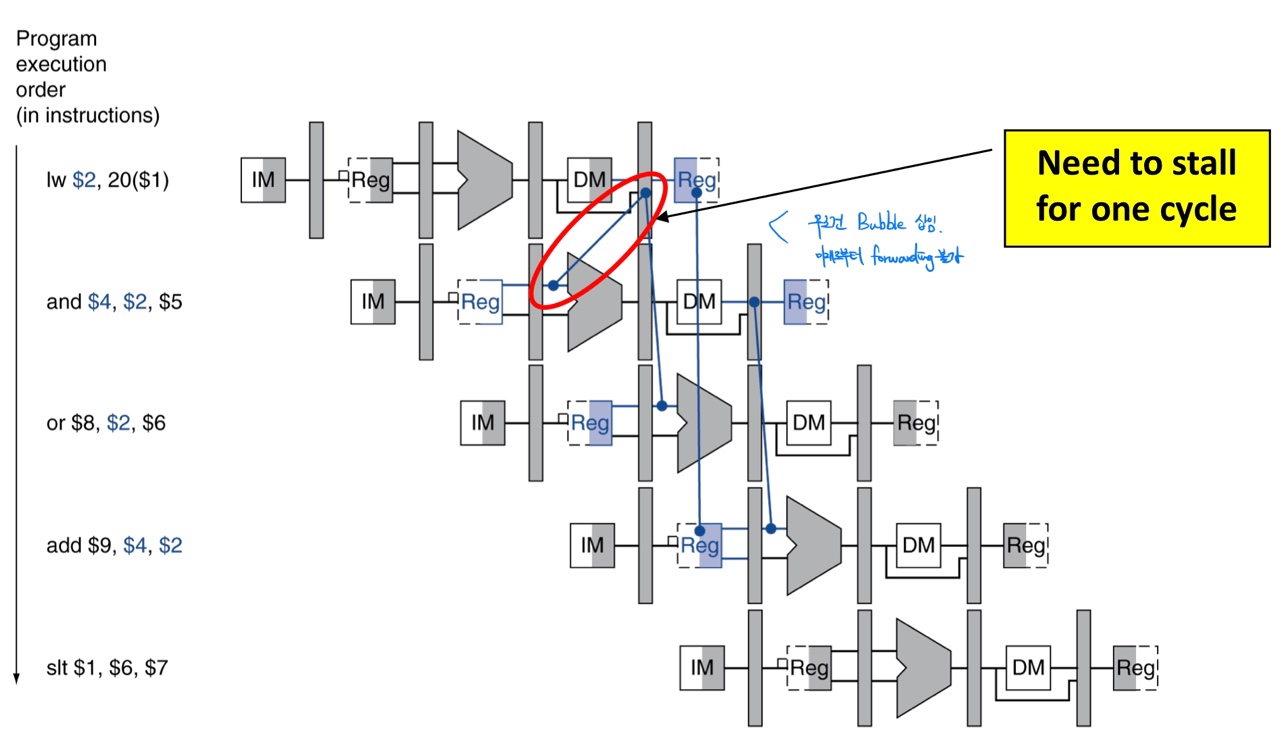

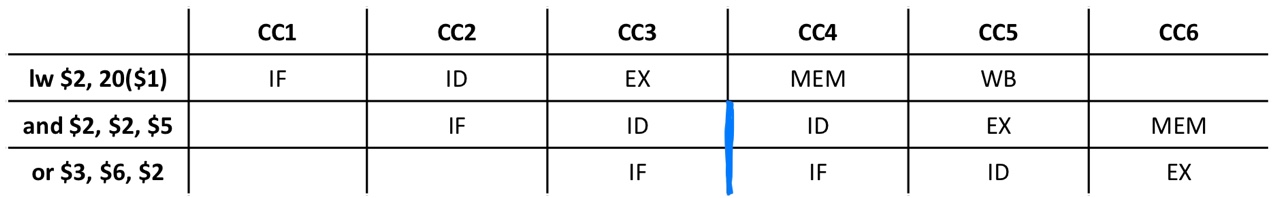

Load-use data hazards
But, sometimes, we cannot avoid stalls by forwarding
We need to stall for one cycle when we have to forward the data from MEM/WB registers to ALU stage
How to detect & when to forward
- Step 1: Check the following condition
- ID/EX.MemRead == 1 && (ID/EX.RegisterRt == IF/ID.RegisterRs || ID/EX.RegisterRt == IF/ID.RegisterRt)
- Step 2: If detect, stall
- Prevent PC and IF/ID from changing
the same instruction is executed in IF & ID stages
- Insert nop in the EX stage by setting the control signals in ID/EX register to 0
- PCWrite = 0, IF/IDWrite = 0 (if no load-use data hazards, they are 1)

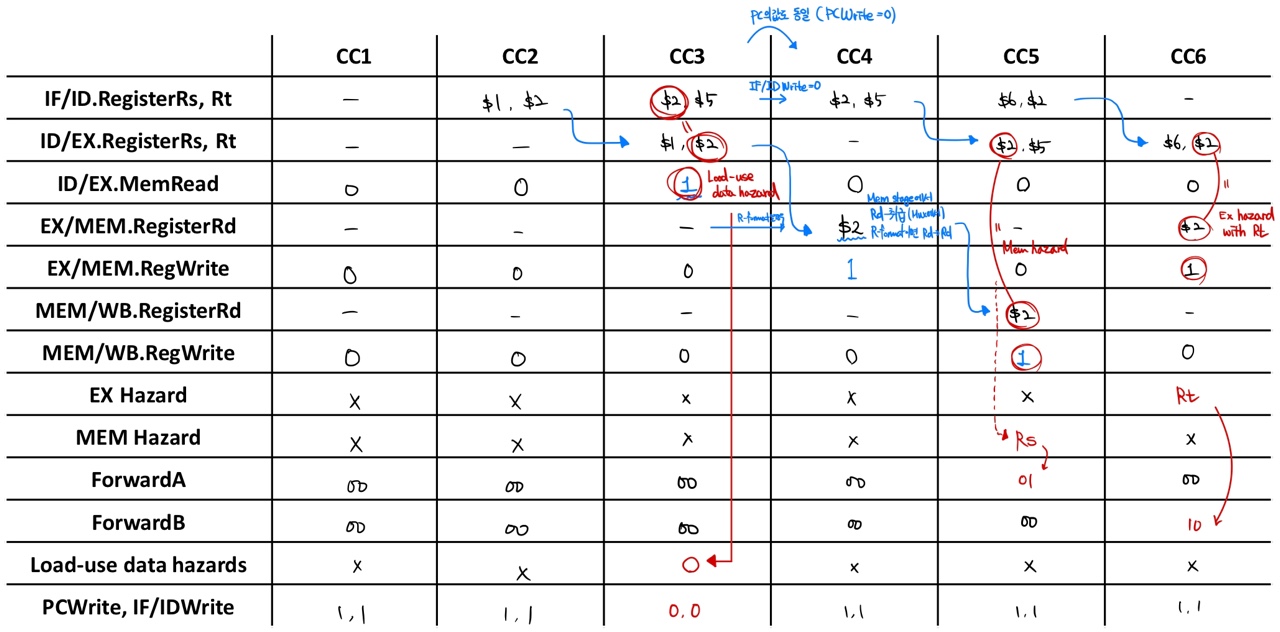

Practice
Code scheduling
Reorder code to avoid the load-use data hazards (done by compiler)
Algorithm
- Check the existence of load hazards
- A load hazard occurs when the destination register of a load instruction is used as a source register of its next instruction
- If exists, check whether there is a code that can ve executed after the load instruction
- This reordering must not change the result of the program, while solving hazard
- We must consider the instruction dependencies

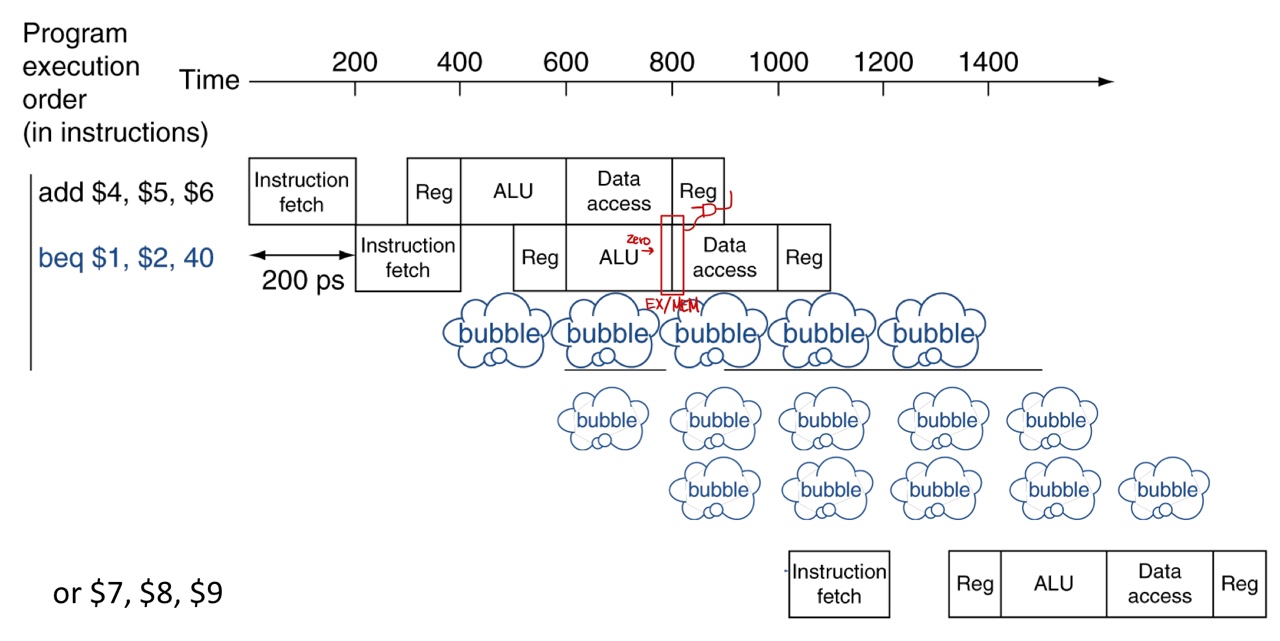

Control hazards
If branch outcome is determined in a MEM stage, there will be three pipeline bubbles
How to process
- Simple solution: static branch prediction
- Predict that the branch will not be taken (just the next instruction will be executed)
- If the prediction is correct, there will be no pipeline stall
- If the prediction is incorrect, flush 3 instructions and insert 3 pipeline bubbles
- Improving by early comparison in ID stage
- Use same prediction
- If the prediction is correct, there will be no pipeline stall
- If the prediction is incorrect, flush 1 instruction and insert 1 pipeline bubble
- Dynamic branch prediction
- History-based prediction with BPT(branch prediction table), store a recent branch decision (taken / not taken)
- Indexed by branch instruction addresses
Dynamic branch prediction
Make a better branch prediction in a way to reduce the number of misprediction
-
Step 1: access a branch prediction table by using the instruction address
-
Step 2: Check the prediction value in the table and fetch the next (not taken) or target branch instruction (taken)
-
Step 3: If the prediction is wrong, flush pipeline and flip prediction

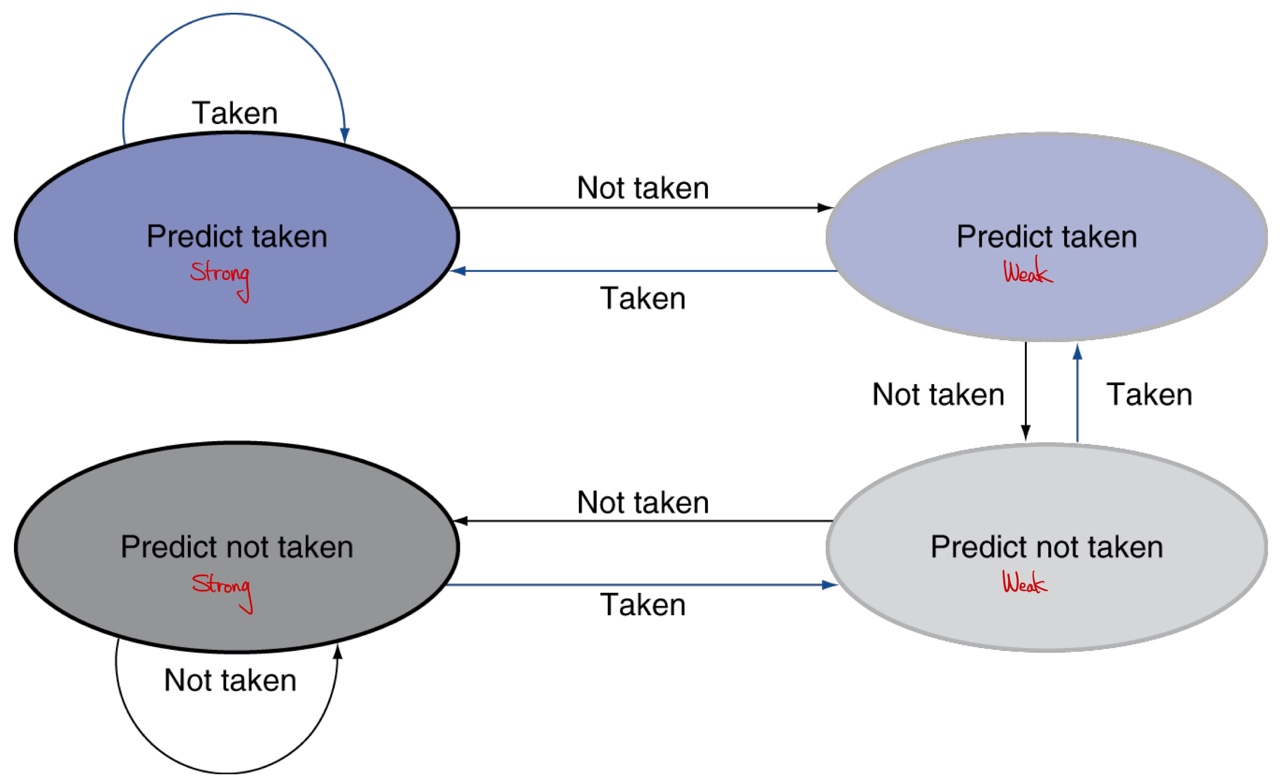

2-bit predictor
Only change prediction on two successive mispredictions
Branch target buffer
Still, we should experience 1 pipeline stall to compute the target address for a taken branch
-
Cache of target address
-
Indexed by the address of branch instructions
-
When a branch instruction is fetched and its prediction is "taken",
then check the branch target buffer
- If there is a target address, fetch the target immediately
