Controlling a datapath

main control

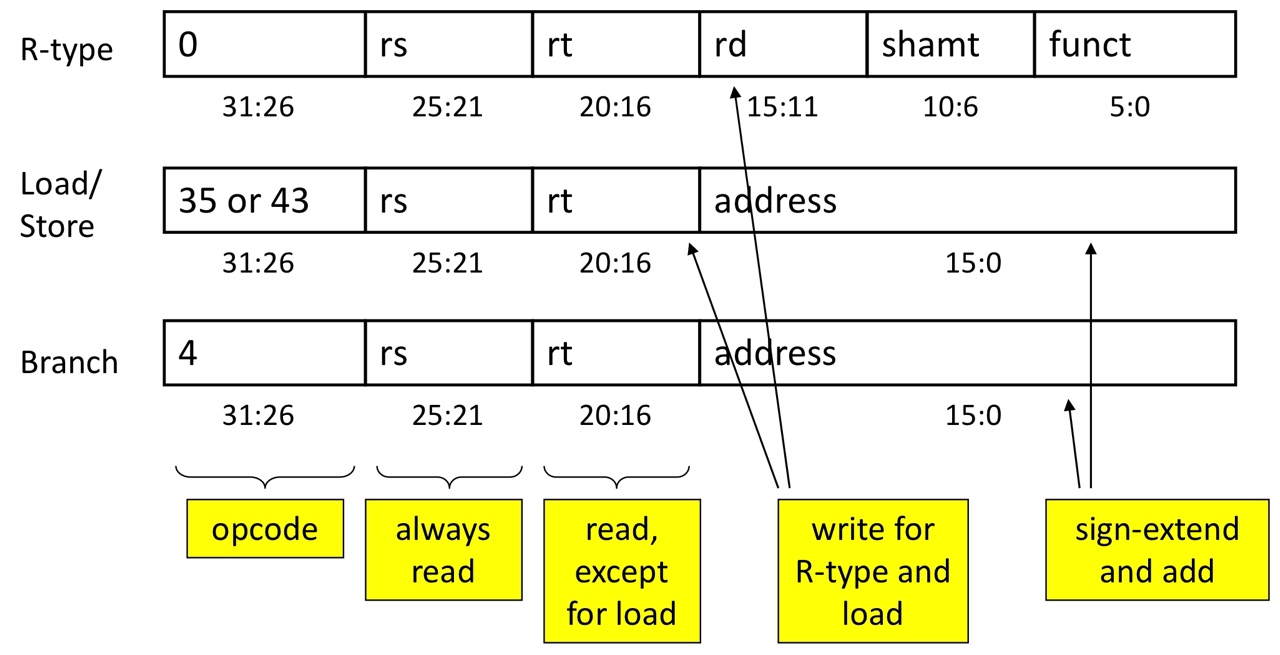

Control signals are derived from given instructions

01 5.jpg

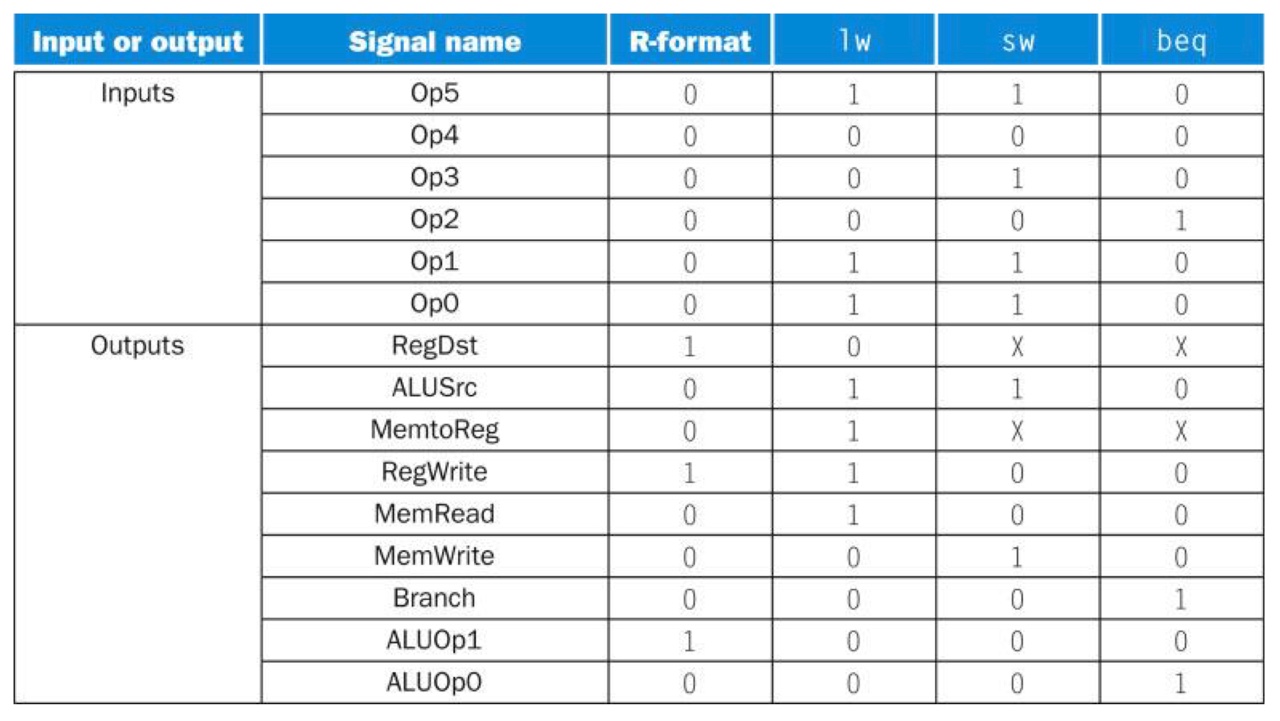

rs is always being read
rt is being read except when the instruction is lw.

- It is for loading

02 5.jpg

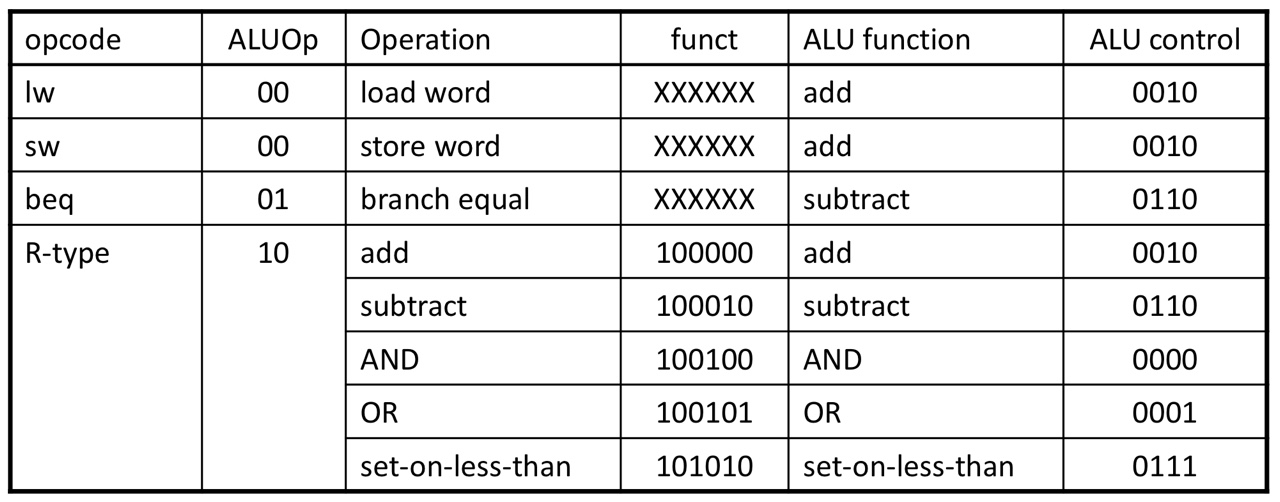

ALU control

Load / store instructions: add
Branch instructions: subtract
R-format instructions: depends on a function field in the instructions

03 4.jpg

Main Control Unit determines the ALUOp value
Whatever the funct codes are, if the opcode is lw, sw, or beq, ALU fuction is determined automatically
