contents: 0-1. CA Intro

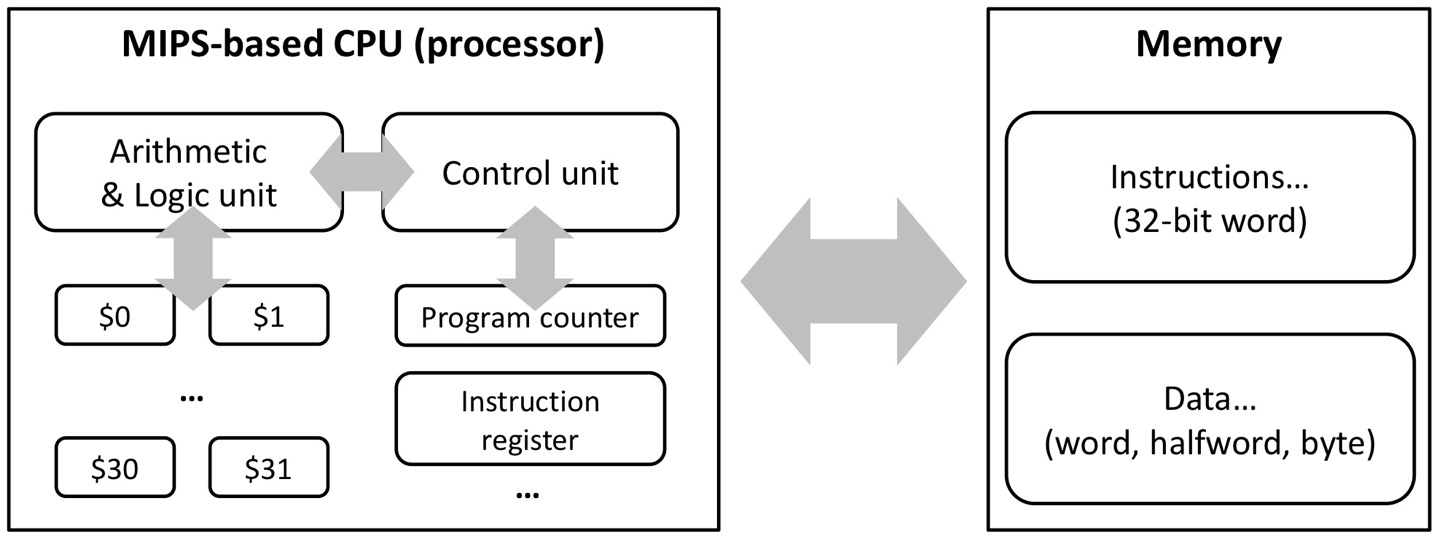

Common HW design for MIPS ISA
CPU, register, and memory
- Control unit (CU) directs the operation of the processor
- Arithmetic & logic unit (ALU) does the operation
$0, ..., $31hold the value that will be used in the operation (called general purpose register)- Program counter (PC) contains the memory address of the instruction will be executed
- Instruction register (IR) contains the current instruction
Execution of the instruction
- Step 1 (fetch): CU says "load the instruction from the memory address in PC to IR"
- Step 2 (decode): CU says "the instruction stored in IR means
ADD $s0, $s1, $s2 - Step 2 (execute): ALU does the add operation with the values in
$s1and$s2and stores the computation result in$s0
Operation
Arithmetic operations
Instructions for arithmetic
| Operation | C | Java | MIPS assembly language | Example |
|---|---|---|---|---|
| Add | + | + | add (R), addi (I) |
add $t0, $t1, $t2 |
| Subtract | - | - | sub (R) |
sub $t0, $t1, $t2 |
Logical operations
Instructions for bitwise manipulation
| Operation | C | Java | MIPS assembly language | Example |
|---|---|---|---|---|
| Bitwise AND | & | & | and(R), andi(I) |
and $t0, $t1, $t2 |
| Bitwise OR | | | | | or (R), ori(I) |
or $t0, $t1, $t2 |
| Bitwise NOR | ~ | ~ | nor(R) |
nor $t0, $t1, $t2 |
MIPS has no NOT instruction Instead, it has NOR R-type instruction
- a NOR b == NOT (a OR b)

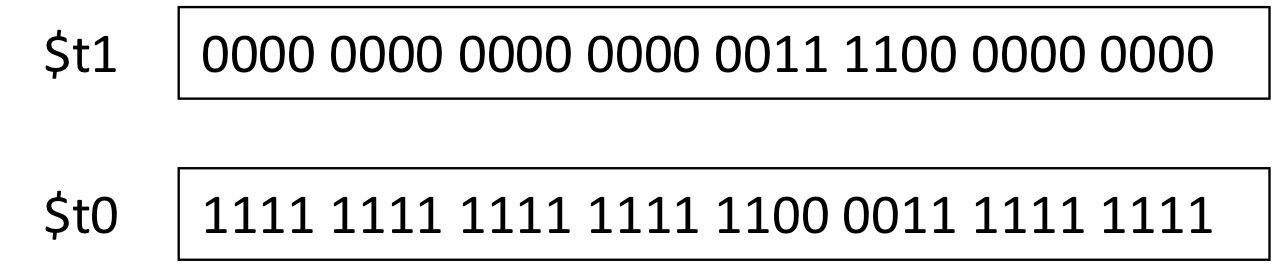

- But, we can do the NOT operation with NOR:
nor $t0, $t1, $zero!
Shift operations
| Operation | C | Java | MIPS assembly language | Example |
|---|---|---|---|---|
| Shift left | << | <<< | sll (R) |
sll $s1, $s2, 10 ($s1 = $s2 << 10) |
| Shift right | >> | >>> | srl (R) |
srl $s1, $s2, 10 ($s1 = $s2 >> 10) |

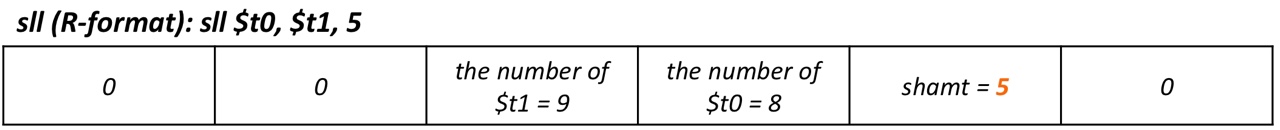

- shamt: how many positions to shift
- Shift left/right logical (sll / srl)
- Shift left/right and fill with 0 bits
- (unsigned only) sll with i bits = multiply by
- (unsigned only) srl with i bits = divide by
Conditional operations
| Operation | MIPS assembly language | Example |
|---|---|---|
| Conditional branch | beq(I) |
beq $t0, $t1, LABEL (if t1, goto LABEL) |
bne(I) |
bne $t0, $t1, LABEL (if t1, goto LABEL) |
|
| Unconditional branch | j(I) |
j LABEL (goto LABEL) |
Instructions for making decisions Usually combined with goto statements and labels there are no branch instructions like blt (less than) and bge (greater than or equal to)
Why?
- Handling <, >, <=, >=, ... is slower and more complicate than =, !=
- It will cause increase of instruction count and clock period or CPI
Instead, MIPS provides others
| operation | MIPS assembly language | Example |
|---|---|---|
| Set on less than | slt(R), slti(I) | slt t1, t1 < t0 = 1; else $t0 = 0) |
slt is used in combination with beq and bne
slt $t0, $t1, $t2
bne $t0, $zero, LABEL
beq $t0, $zero, LABEL
