Design principles 1~3 of MIPS ISA

contents: 0-1. CA Intro

MIPS ISA

What is MIPS ISA

Microprocessor without Interlocked Pipelined Stages
A kind of ISA

Design principles

Simplicity favors regularity
Smaller is faster
Make the common case fast

Design Principle 1

Simplicity favors regularity

Regularity: all MIPS arithmetic instructions include a single operation & three operands
Regularity makes implementation simpler
Simplicity enables higher performance at lower cost

Examples

add a, b, c
- $a = b + c$
sub a, a, d
- $a = a - d$

Design Principle 2

Smaller is faster

Operands of MIPS arithmetic instructions must be chosen in a small number of registers
Register: Fast locations for data

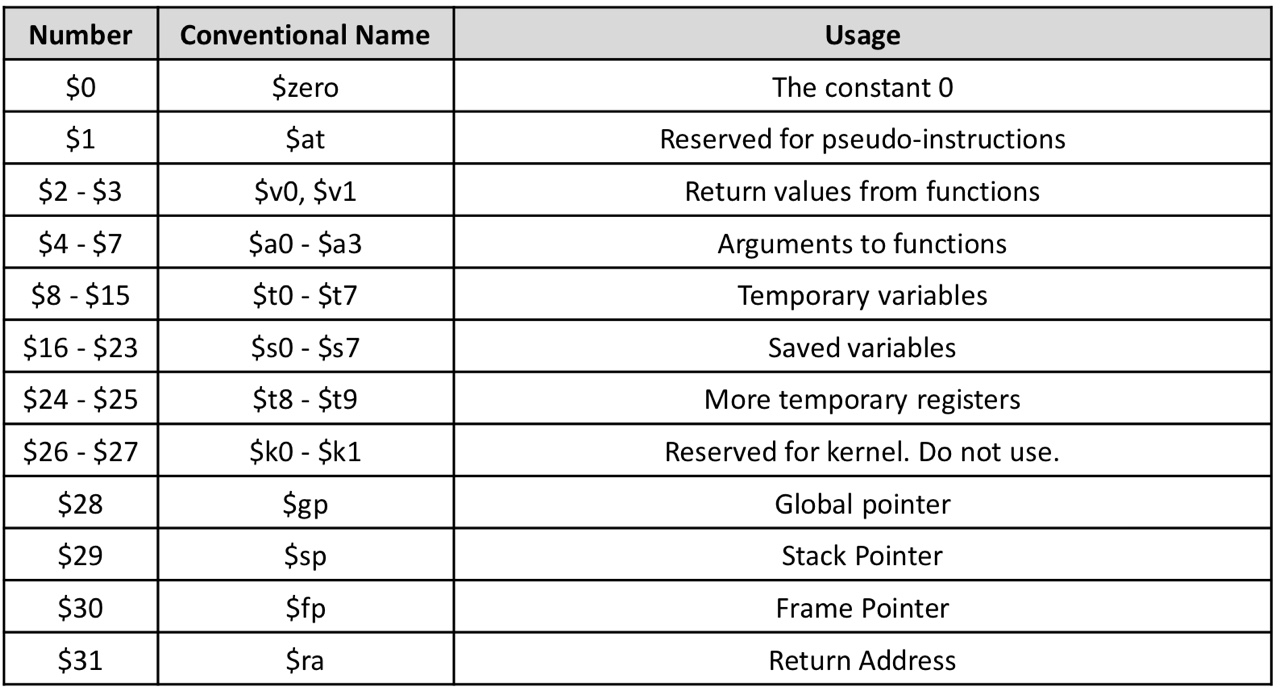

32 32-bit registers in MIPS
32 is $2^5$ that can be represented by using 5 bits

Practice 1

C code:

f = (g + h) - (i + j)

Compiled MIPS assembly language code:

add $t0, $s1, $s2
add $t1, $s3, $s4
sub $s0, $t0, $t1

Memory instruction

Memory organization

keep a small amount data in registers and other remaining, complex data in memory

Load values from memory into registers
Store results from registers to memory

Address

A memory address is an index to the memory array, starting at 0 MIPS uses byte addressing (Each address identifies an 8-bit byte)

But, most data items are larger than a byte. So, they use "words"

In MIPS, a ward is 32 bits
Registers also hold 32-bit of data

Alignment restrictions

The start address of each data should be multiple of N, where N is the size of the data
In MIPS, words must start at a addresses that are multiples of 4
Some data items use one or two bytes (halfword)

Byte ordering

Big endian(MIPS): place the most significant byte first and the least significant byte last
Little endian: place the least significant byte first and the most significant byte last

Load/Store

lw reg1 offset(reg2): Load 32-bit word from the memory address reg2 + offset into reg1
sw reg1 offset(reg2): Store 32-bit word in reg1 at the memory address reg2 + offset
lh/sh and lb/sb instructions load/store halfwords and 8-bit of data

Practice 2

C code:

g = h + A[8]

A is an array of 4-bytes words
The value of g and h are in $s1 and $s2
The base address of A is in $s3

Compiled MIPS assembly language code:

lw $t0, 32($s3)
add $s1, $s2, $t0

Practice 2

C code:

A[12] = h+ A[8]

A is an array of 4-bytes words
The value of h is in $s2
The base address of A is in $s3

Compiled MIPS assembly language code:

lw $t0, 32($s3)
add $t0, $s2, $t0
sw $t0, 48($s3)

Practice 3

C code:

f = (g + h) - (i + j)

f, g, and h are in $s0, $s1, and $2 respectively
Halfwords i and j are sequentially stored in memory
The start address of i is stored in $s3

Compiled MIPS assembly language code:

add $t0, $s1, $s2
lh $t1, 0($s3)
lh $t2, 2($s3)
add $t3, $t1, $t2
sub $s2, $t0, $t3

Design Principle 3

Make the common case fast

Common case : a program uses a small constant in an operation many times

Solution: support

16-bit immediate operands for handling the constants
- no need to access memory to load the constants
- addi $t0, $t0, 4 : addi is an add immediate instruction
MIPS register 0 ($zero) contains the constant 0
- add $t0, $t1, $zero : move values between two registers $t0 and t1

Practice 4

C code:

f = A[10] - i + 4

A is an array of bytes and its base address is stored in $s0
f and i are stored in $s1 and $s2 respectively

Compiled MIPS assembly language code:

lb $t0, 10($s0)
sub $t1, $t0, $s2
addi $s1, $t1, 4

Summary: MIPS ISA

Key underlying design principles

Design principle 1. Simplicity favors regularity
- All MIPS arithmetic instructions include a single operation & three operands
Design principle 2. Smaller is faster
- Operands of MIPS arithmetic instructions must be chosen in a small number of registers
- MIPS keeps more complex data in memory and supports data transfer between memory and registers
Design principle 3. Make the common case faster
- Support 16-bit immediate operands for handling small constants + $zero
